3D Ground Scanner for Treasure Hunters and Gold Seekers

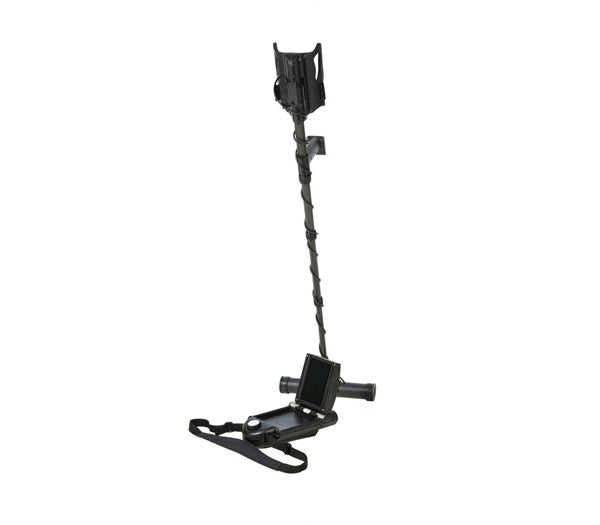

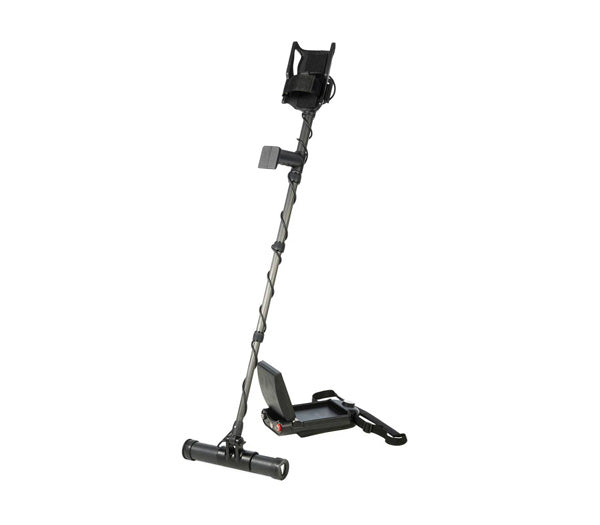

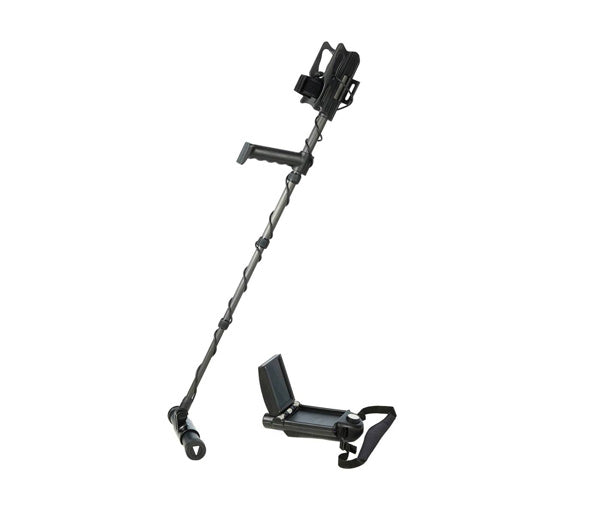

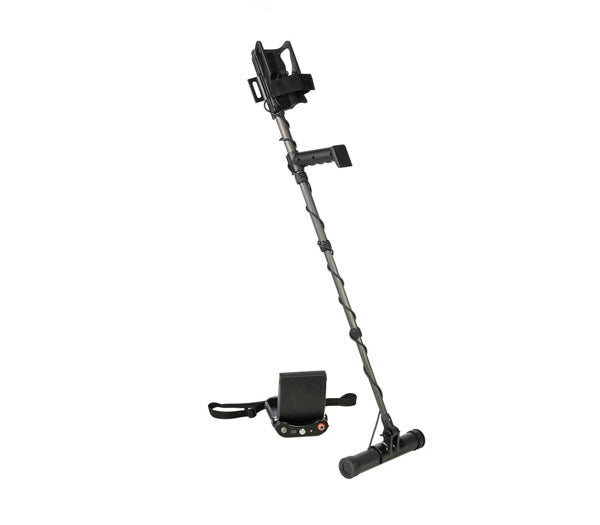

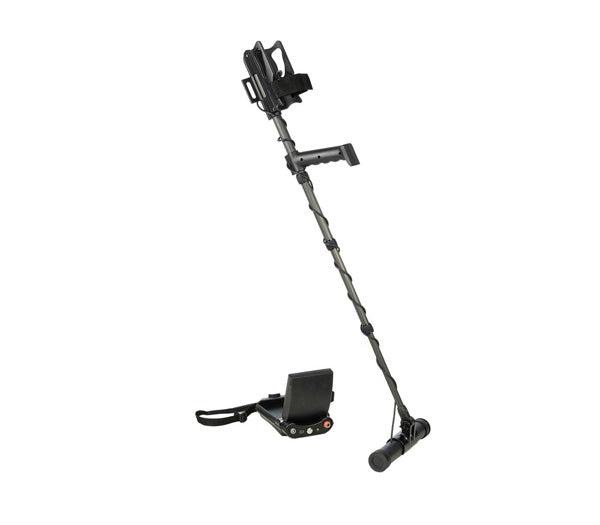

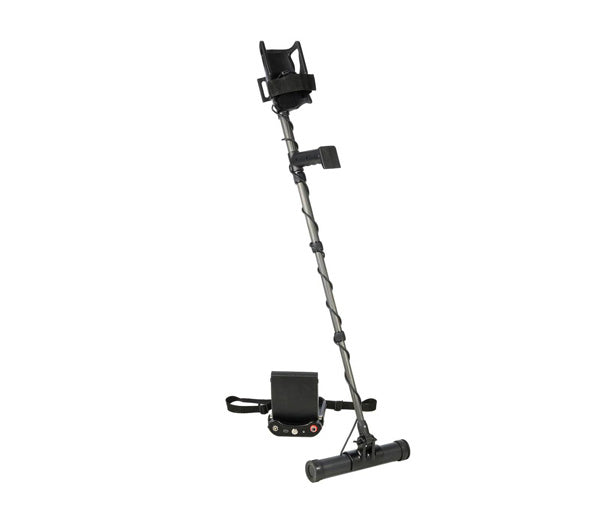

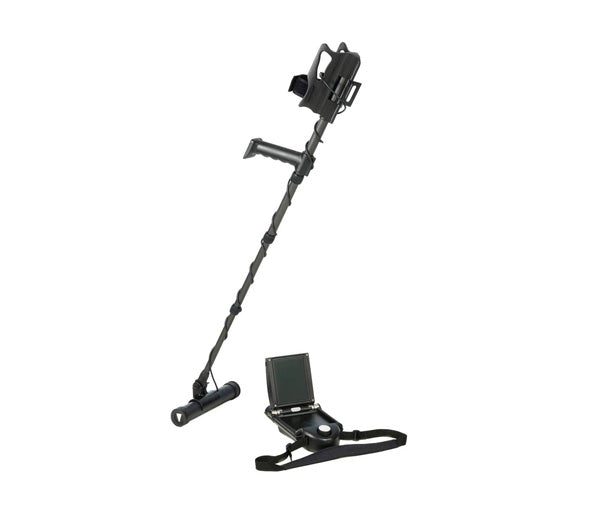

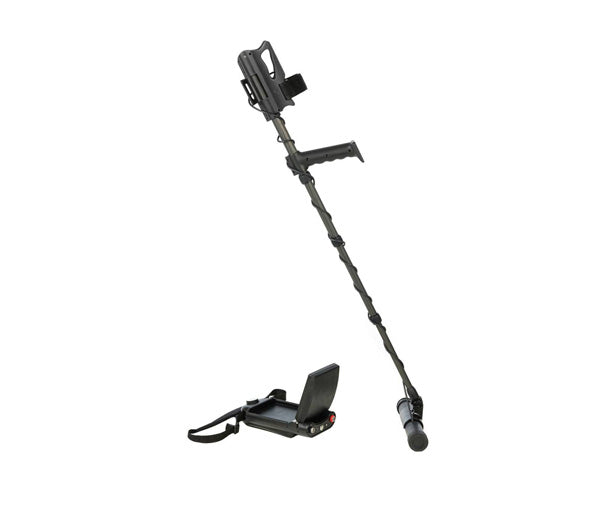

Are you tired of finding only small objects near the surface? Do you want to detect the real buried treasures which lie deeper than a normal metal detector can detect? OKM introduces the multifunctional sub-surface imaging detector and ground scanner eXp 4500. Developed for treasure hunters as well as prospectors, the eXp 4500 allows to find those buried treasures.

Unlike other ground scanners and imaging detectors, the eXp 4500 is truly unique. Calling the eXp 4500 a simple detector is not justified, due to its multitude of built-in functions, the eXp 4500 can locate buried items, ancient artifacts, lost treasures and naturally occurring mineralization like gold and silver at depths well beyond that of a common metal detector.

---

---

Measurement Data in High Resolution

The measurement unit of the eXp 4500 includes a PC-module with which data is displayed immediately on the full color screen. Measured data is stored in the internal memory and can be transferred later to a computer. Transferring measured values to a computer allows the operator to evaluate and compare all stored data. In doing this the operator can determine depth, size and position of targets using the professional Visualizer 3D software.

Characteristics of the eXp 4500

• lightweight portability
• non-intrusive real time ground surveying
• quick and easy set up and operation
• live color coded surveys
• allows for impromptu and fast surveys
• immediate on-site interpretation of target area
• measured values showing extreme depth of survey
• measured values showing location of targets within surveyed area
• highly sensitive and accurate metal detecting device

Applications of the eXp 4500 Ground Scanner

The eXp 4500 ground scanner is a high performance metal detecting device which is specially designed for the following applications:

• Archaeological 3D surveys, metal detection, treasure hunting and gold prospection
• pin pointer function to locating the exact position of buried treasures and artifacts
• 3D imaging including size and depth
• detecting gold and other items of great value
• finding ancient artifacts, hidden treasures, gold, silver, bronze, hoards of coins, treasure deposits, pirate chests
• tunnels, voids and cavern locating
• mineral and natural gold prospecting

With several specialized detection antennas, the eXp 4500 ground scanner can also be used in highly mineralized areas for treasure hunting and prospecting.

Special Probes and Antennas

The functionality of the eXp 4500 metal detector is only one key point that makes it a unique treasure hunting unit. Every single probe and antenna is tuned and optimized for its own purpose and function. The following antennas are available:

• GPR-Antenna (25cm, 50cm, 75cm, 100cm)
• Antenna for tunnel detection
• Super Sensor for high resolution ground scans, pin pointing and mineral detection

---

Control unit

• Dimensions (H x W x D): 220 x 160 x 295 mm
• Weight: approx. 1350 g
• Input voltage (max.): 12 – 14.4 V DC, 22 W maximum
• Processor / Main CPU: 800 MHz, INTEL i586-compatible
• Data memory: 256 MB
• Operating temperature: 0°C – 70°C
• Storage temperature: –20°C – 60°C
• Waterproof: No
• Operating time: approx. 3 hours (delivered power supply full charged, 25°C)
• Air humidity: 5% – 75%
• Feedback: acoustic, visual
• Protection Type: IP40
• Working memory: 256 MB RAM

Data transmission

• Technology: USB
• Maximum Transfer Rate: 115200 Baud

Computer minimum requirements

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum 256 MB
• Graphic card: minimum 128 MB, OpenGL-compatible
• Processor: minimum 1.2 GHz
• Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.

---
